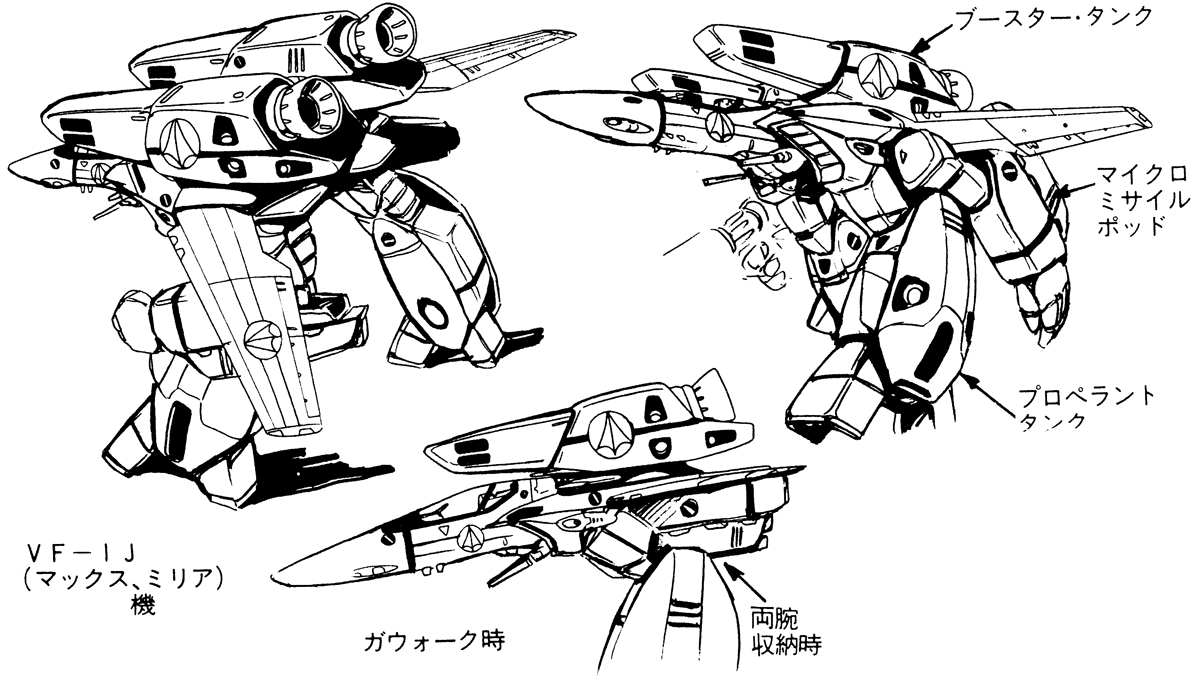

VF-1J GERWALK equipped with FAST Pack system
GU-11 55mm Gatling Gun Pod
AMM-1 Missiles
RMS-1 Anti-Ship Reaction Warhead
HMM-01 Micro Missiles
Micro Missiles (mounted in FAST Pack Arm Unit)
|
Shinnakasu VF-1J Super Valkyrie GERWALK "Max"
Equipment Type: FAST Pack augmentative space weapon system
Unofficial codename: Super Valkyrie, Booby Duck
Government: U.N. Spacy
Manufacturer: Shinnakasu Heavy Industry (FAST Packs manufactured by Shinnakasu Heavy Industry)
Introduction: January 2010
Operational Deployment: January 2010
Accommodation: pilot only in Marty & Beck Mk-7 zero/zero ejection seat
Dimensions:
Battroid Mode: height 14.1 meters; width 9.8 meters; length 4.8 meters
Fighter Mode: wingspan 14.78 meters (fully extended); height 5.5 meters; length 14.0 meters
GERWALK Mode: wingspan 14.78 meters (fully extended); height 10.36 meters; length 11.3 meters
Mass: empty 19.2 metric tons; standard T-O mass 45.0 metric tons; maximum T-O mass 72.0 metric tons
Structure: space metal frame, SWAG energy conversion armor
Power Plant: two Shinnakasu Heavy Industry/P&W/Roice FF-2001D thermonuclear reaction turbine engines, output 650 MW each
Propulsion: 11,500 kg [x g] x 2, 23,000 kg [x g] x 2 in overboost (225.63 kN x 2 overboost); FAST Pack P&W+EF-2001 booster thrusters 2 x 120,000 kg [x g] (1,177.2 kN x 2); 16 x high-maneuverability vernier thrusters, 4 x low-thrust vernier thrusters beneath multipurpose hook/handles
Thrust-to-weight ratio: (with FAST packs) standard T-O 6.36; maximum T-O 3.97
Performance:
Battroid Mode: maximum walking speed 160 km/h
Fighter Mode: at 10,000 m Mach 2.71; at 30,000+ m Mach 3.87
GERWALK Mode: maximum walking speed 100 km/h; flying 500 km/h
g limit: in space +7
Design Features: 3-mode variable transformation; variable geometry wing; vertical take-off and landing; control-configurable vehicle; fly-by-light; rectangular underfuselage air intakes with intake vane, variable ramps, and retractable cover shutters (for Battroid mode or space use); single-axis two-dimensional thrust vectoring nozzles operate in lieu of conventional elevators and horizontal stabilizers and in tandem with wing thruster roll control system; one ventral fin under each engine nacelle; large airbrake directly rear of cockpit canopy (nozzle feet operate as airbrakes also); two-section flap (with spoiler) and fowler flap occupy almost entire wing trailing-edge; leading-edge slats; conventional rudders with honeycomb construction in outward-canted vertical tail surfaces; two cooling sub-air intake/airframe lift adjustment slits located on forward main body in Fighter mode operate in lieu of glove vanes by controlling airflow; four times the mobility of the Destroid Spartan; three "magic hand" manipulators for maintenance use; retractable canopy shield for Battroid mode and atmospheric reentry; retractable tricycle undercarriage (landing gear) with two steerable nosewheels retract rearward into nose and twin coupled mainwheels inward into fuselage; 2 x arresting hooks mounted underfuselage on engine nacelles; 2 x forward-looking infrared (FLIR) sensors in recessed emplacements within leg-joint nacelles (built below and to the fore of the cockpit canopy in egg-shaped blisters on either side of the Fighter mode nosecone); option of GBP-1S system, atmospheric-escape booster, or FAST Pack system
Transformation:
Min time from Fighter to GERWALK (automated): approx. 1.5 sec.
Min time from GERWALK to Battroid (automated): under 2 sec.
Standard time from Fighter to Battroid (automated): under 5 sec.
Min time from Fighter to Battroid (manual): 0.9 sec.
- Armament -
Guns:
2 x Fixed Mauler RÖV-20 anti-aircraft laser cannons, firing 6,000 pulses per minute each
1 x Howard GU-11 55 mm three-barrel Gatling gun pod with 200 rds fired at 1,200 rds/min
Bombs & Missiles:
4 x underwing hard points for 12 x AMM-1 hybrid guided multipurpose missiles (3/point)
or 12 x MK-82 LDGB conventional bombs (3/point)
or 6 x RMS-1 large anti-ship reaction missiles (2/outboard point, 1/inboard point)
or 4 x UUM-7 micro-missile pods (1/point) each carrying 15 x Bifors HMM-01 micro-missiles
or a combination of above load-outs
Additional Armament (Shinnakasu FAST Pack augmentative space weapon system):
6 x micro-missiles in two NP-AR-01 micro-missile launcher pods (mounted rear-ward under center ventral section in Fighter mode or on lower arm sections in GERWALK/Battroid mode)
24 x micro-missiles (estimated count) in two HMMP-02 micro-missile launcher pods
|
Both Max and Milia made use of FAST Pack equipped VF-1J Valkyries in the final battle of Space War I against the 118th Bodol Zer Main Fleet.
|
Debut: Super Dimension Fortress Macross, Episode 24
Pilot(s): Maximilian Jenius
Other Appearances: None
Original mechanical designer: Shoji Kawamori
|
